20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

Shenzhen Miray Communication Technology Co., Ltd.
Contact Now

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

  • 1
  • 2
  • 3

Brand Name : Mray

Model Number : SFP-10G-BX20-SM1270/1330

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : USD25-35/piece

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : 10Gb/s SFP+ BIDI 20km Optical Transceiver Module

Rate : 10G

Connector : simplex LC

Wavelength : 1270/1330nm

Distance : 20km

Fiber type : SMF

Application : Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,

Operating temperature : 0°C to 70°C

Contact Now

10Gb/s SFP+ BIDI TX:1270nm/RX:1330nm 20km Optical Transceiver Module

Description

Miray’ SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features

  • Fiber Bi-Directional SFP+ Optical Transceiver
  • Electrical interface compliant to SFF-8431
  • Hot Pluggable
  • Up to 10.7Gbps Data Links
  • 1270/1330nm DFB LD Transmitter
  • 1270/1330nm PIN Receiver
  • Low power consumption
  • Applicable for 20km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • Operating case temperature: 0~70°C/-40~85°C

Applications

  • 10GBASE-LR/LW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre Channel

Recommended Operating Environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

TC

-5

+70

°C

Supply Voltage

VCCT, R

+3.135

+3.465

V

Supply Current

ICC

450

mA

Power Dissipation

PD

1.5

W

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX10-SM1330 1320 1330 1340
Average output power Po -6 -1 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX10-SM1330 1260 1270 1280
Receiver Sensitivity Sen -14.5 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 4 dB

Ordering Information

Ordering Information

Model No.

Description

SFP-10G-BX10-SM1270

10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 10km, LC, DDM

SFP-10G-BX10-SM1310

10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 10km, LC, DDM

SFP-10G-BX20-SM1270

10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 20km, LC, DDM

SFP-10G-BX20-SM1310

10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 20km, LC, DDM

SFP-10G-BX40-SM1270

10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 40km, LC, DDM

SFP-10G-BX40-SM1310

10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 40km, LC, DDM

SFP-10G-BX60-SM1270

10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 60km, LC, DDM

SFP-10G-BX60-SM1310

10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 60km, LC, DDM

SFP-10G-BX80-SM1490

10G bidi SFP+ transceiver module, Tx1490/Rx1550nm, 80km, LC, DDM

SFP-10G-BX80-SM1550

10G bidi SFP+ transceiver module, Tx1550/Rx1490nm, 80km, LC, DDM

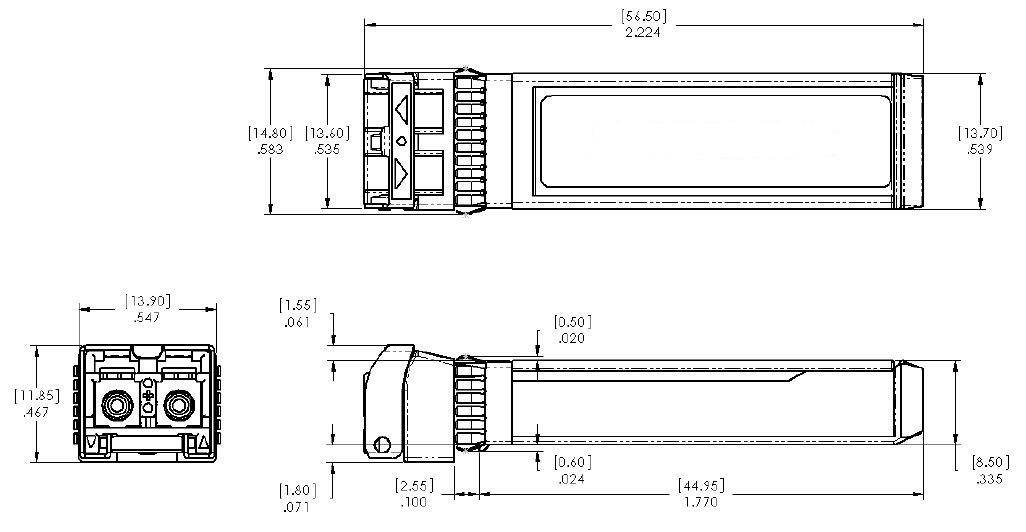

Dimension

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

Product Packing

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

Compatibility Test

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

Compatible Brands

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

Production Flow

20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network
20km SFP+ Transceiver Module Single Mode 10g For FTTH FTTB FTTO Network

For more details, welcome to inquire us freely.
