1000base Lx Sfp Cisco Duplex LC Connector sm Fiber Type

Name: 1000base Lx Sfp Cisco Duplex LC Connector sm Fiber Type
Brand: Mray
Price: 6 USD

China 1000base Lx Sfp Cisco Duplex LC Connector sm Fiber Type wholesale

Brand Name : Mray

Model Number : SFP-GE-LX20

Certification : CE,

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : USD6-8/piece

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : 1000BASE-LX 1.25G SFP Transceiver Module

Rate : 1.25Gbps

Connector : Duplex LC

Wavelength : 1310nm

Distance : 20km

Fiber type : SMF

Application : Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,

Warranty : 3 Years

Contact Now

Cisco GLC-LH-SM Compatible 1000BASE-LX 1.25G SFP Transceiver Module 1310nm SMF

Description

The small form-factor pluggable (sfp transceiver ) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network component vendors.

Features

1. Multi-sourced SFP package with dual LC/PC receptacles

2. Single mode dual fibers transmission
3. Up to 20Km with 9/125μm SMF
4. AC coupled for Rx and Tx side
5. Two temperature ranges: 0°C to +70°C for commercial level, -40°C to +85°C for industrial level
6. operates at data rate 1000Mbps
7. Complies with lots of brands of switch such as h3c…….
8. Low power consumption and high sensitivily
9. Can be with or without DDM
10.Complies with SFP Multi-Source Agreements standards (MSA)
11.Complying with Class 1 Laser,and the requirements of IEC60825-1

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Recommended Operating Environment

Parameter		Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	Industrial	T_C	-40		85	°C
	Extended		-5		85	°C
	Commercial		0		+70	°C
Supply Voltage		V_CC	3.135		3.465	V
Supply Current		Icc			300	mA
Inrush Current		I_surge			Icc+30	mA
Maximum Power		P_max			1	W

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λ_c	1270	1310	1360	nm
Spectral Width(RMS)	σ_RMS			3	nm
Optical Output Power	P_out	-9		-3	dBm	1
Extinction Ratio	ER	8.2			dB
Optical Rise/Fall Time	t_r / t_f			260	ps	2
Relative Intensity Noise	RIN			-120	dB/Hz
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λ_c	1260		1360	nm
Receiver Overload	P_ol	-3			dBm	4
RX Sensitivity	Sen			-24	dBm	4
RX_LOS Assert	LOS_A	-35			dBm
RX_LOS De-assert	LOS_D			-25	dBm
RX_LOS Hysteresis	LOS _H	0.5			dB
General Specifications:
Data Rate	BR		1.25		Gb/s
Bit Error Rate	BER			10^-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s	L_MAX		20		km
Total System Budget	LB	15			dB

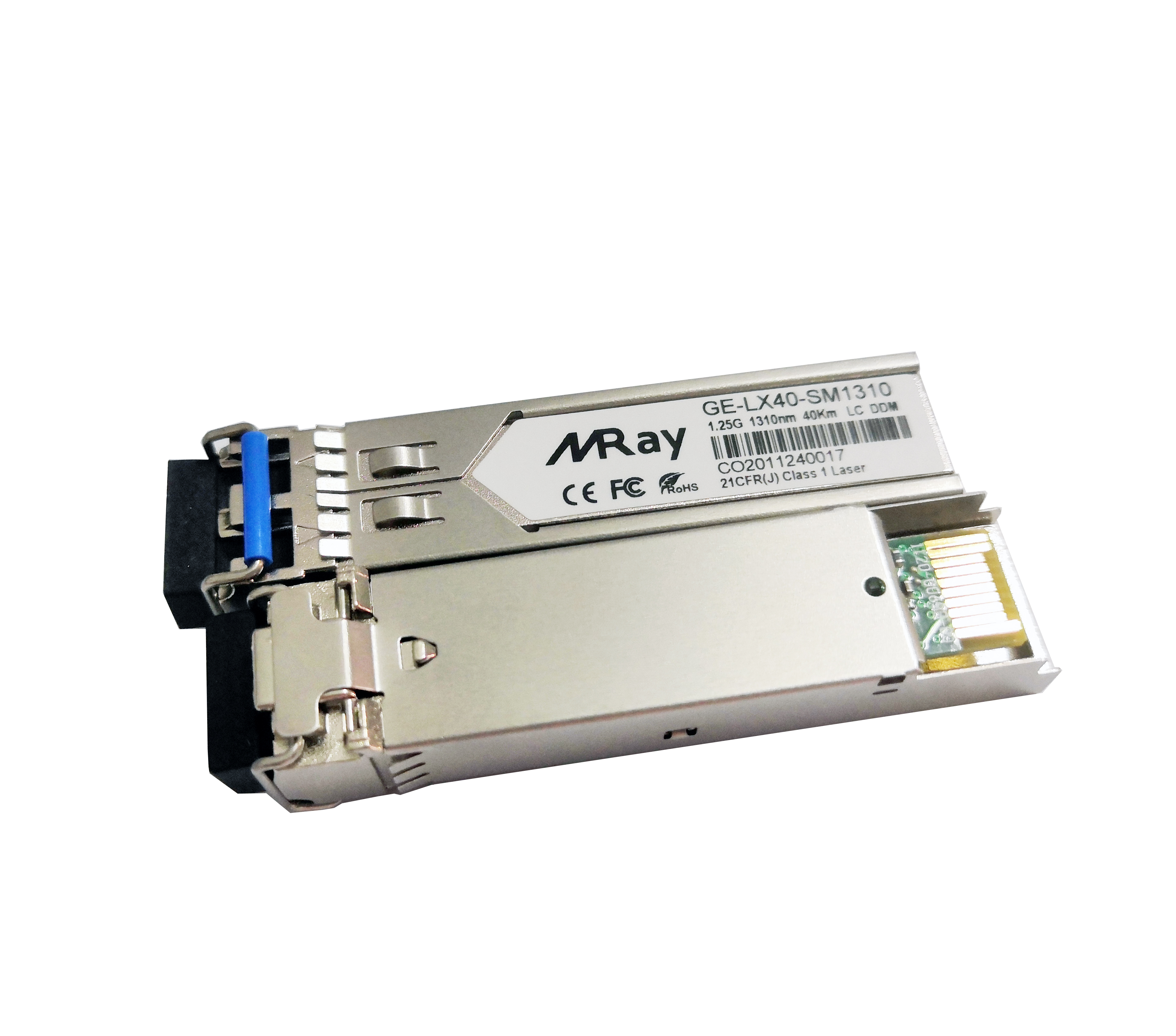

Product Show

Dimension

Product Packing

Compatibility Test

1000base Lx Sfp Cisco Duplex LC Connector sm Fiber Type

Compatible Brands

Production Flow

For more details, welcome to inquire us freely.
